Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply Hydrogen Powered Two-wheeler ufacturer and supplier. we are focusing on new material technology and automotive products.
This product uses hydrogen fuel cell as the energy system. The hydrogen in the high pressure carbon fiber hydrogen storage bottle is input to the electric reactor through the integrated valve of decompression and pressure regulation. In the electric reactor, the hydrogen reacts with oxygen and converts it into electric energy. Compared with rechargeable battery cars, its most outstanding advantages are short gas filling time and long endurance (up to 2-3 hours depending on the volume of hydrogen storage bottle). This product is widely used in city sharing car, takeout car, household scooter and so on.

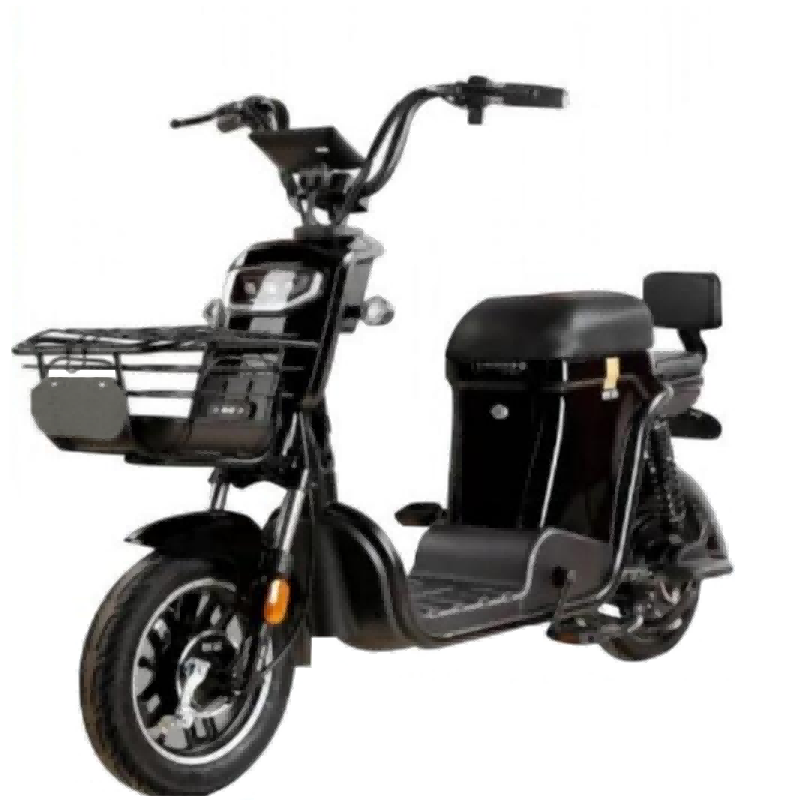

Name : Hydrogen powered two-wheeler
|
Model number : JRD-L300W24V
|
||
Technical parameter category |
Reactor technical parameters |
DCDC technical reference |
Range |
Rated power (w) |
367 |
1500 |
+22% |
Rated voltage (V) |
24 |
48 |
-3%~8% |
Rated current (A) |
15.3 |
0-35 |
+18% |
Efficiency (%) |
0 |
98.9 |
≥53 |
Oxygen purity (%) |
99.999 |
≥99.99(CO<1ppm) |
|
Hydrogen pressure (πpa) |
0.06 |
0.045~0.06 |
|
Oxygen consumption (ml/min) |
3.9 |
+18% |
|
Operating ambient temperature (° C) |
29 |
-5~35 |
|
Operating ambient temperature (RH%) |
60 |
10~95 |
|
Storage ambient temperature (° C) |
-10~50 |
||
Noise (db) |
≤60 |
||
Reactor size (mm) |
153*100*128 |
Weight (kg) |
1.51 |
Reactor + Control size (mm) |
415*320*200 |
Weight (kg) |
7.5 |
Storage volume (L) |
1.5 |
Weight (kg) |
1.1 |
Vehicle size (mm) |
1800*700*1000 |
Total weight (kg) |
65 |
