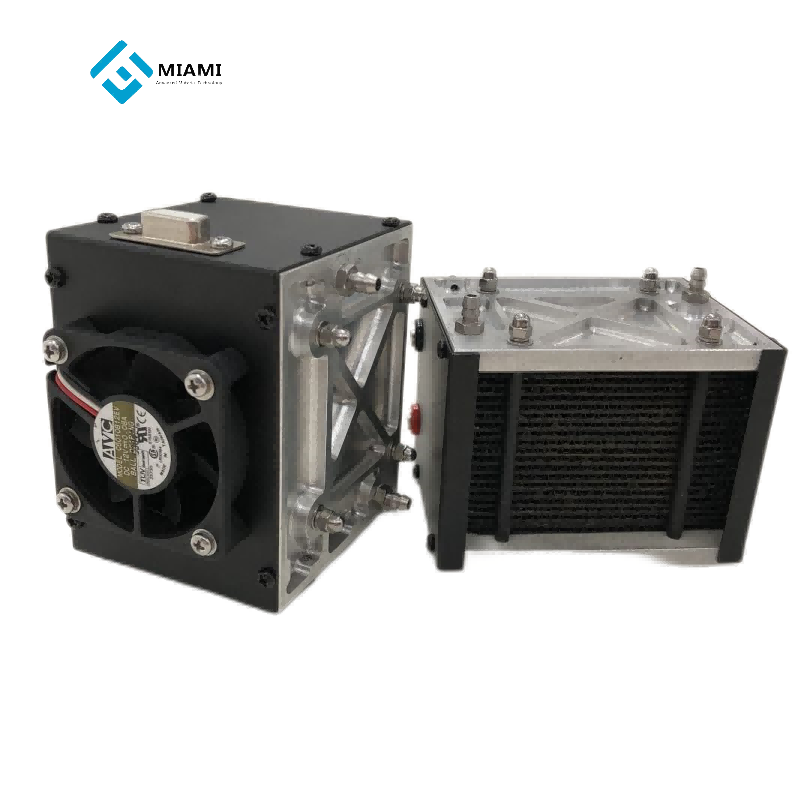

300W Hydrogen Fuel Cell Stack
1.Product Introduction
Stack is the core part of hydrogen fuel cell, which is composed of alternately stacked bipolar plates, membrane electrode mea, seals and front/rear plates. Hydrogen fuel cell takes hydrogen as clean fuel and converts hydrogen into electric energy through electrochemical reaction in the stack.
300W12V hydrogen fuel cell stack can produce 300W of nominal power and brings you full energy independence for various applications that require power in the range of 0-300W.
Small UAVs, robotics, drones, ground robots, and other unmanned vehicles can use this 300W hydrogen fuel cell as a quiet and highly efficient electrochemical power generator in order to improve the operational time or flight time.
2. Product Parameter
Output Performance |
|
Nominal Power |
300 W |
Nominal Voltage |
12 V |
Nominal Current |
25 A |
DC Voltage Range |
11 - 18 V |
Efficiency |
>50% at the nominal power |
|
|
Hydrogen Fuel |
|
Hydrogen Purity |
>99.99% (CO content being <1 ppm) |
Hydrogen Pressure |
0.04 - 0.06 MPa |
Hydrogen Consumption |
3500 mL/min (at nominal power) |
|
|
Environmental Characteristics |
|
Ambient Temperature |
-5 to +35 ºC |
Ambient Humidity |
10% RH to 95% RH (No misting) |
Storage Ambient Temperature |
-10 to +50 ºC |
Noise |
<60 dB |
|
|
Physical Characteristics |
|
Stack Size |
99*88*167 mm |
System Size |
99*128*167 mm |
System Weight |
1.795 kg |
3.Product Feature And Application
Product features:
Many product models and types
It can be customized according to customer requirements
Good environmental adaptability and adapt to various weather changes
Light weight, small volume, easy to install and move
Applications:
Back-up power
Hydrogen bicycle
Hydrogen UAV
Hydrogen vehicle
Hydrogen energy teaching aids
Reversible hydrogen production system for power generation
Case display
4.Product Details
A controller module that manages the startup, shutdown, and all other standard functions of the fuel cell stack. A DC/DC converter will be required to convert the fuel cell power into the desired voltage and current .
This portable fuel cell stack can be easily connected with a high purity hydrogen source such as a compressed cylinder from a local gas supplier, hydrogen stored in a composite tank, or a compatible hydride cartridge to get the best performance.
Fuel cell stack constructure:
Applications for hydrogen fuel cell:
